Plot Shannon Entropy Trajectories

Plots per-site Shannon entropy as continuous trajectories across time partitions for a selected set of sequence sites, using the output of partition_time_windows.

Usage

plot_entropy_trajectories(
  part_data,
  sites = NULL,
  labels = NULL,
  site_colors = NULL,
  by_group = FALSE,
  groups_list = NULL,
  line_type_groups = NULL,
  line_size_groups = NULL,
  transformation = NULL,
  line_size = 1.5,
  legend = TRUE,
  legend_text_size = 12,
  x_angle = 45,
  grayscale = FALSE,
  plot_title = "Shannon Entropy Trajectories"
)

Arguments

part_data: Named list. Output of partition_time_windows, optionally with per-partition Clusters[[i]]$DataFrame already relabeled by the user via relabel_entropy_classes. Must contain elements Clusters, Max_Entropy, Dates_Labels, and N_partitions.
sites: Integer vector. Site indices to include. Defaults to the union of all sites observed across all partitions (i.e. every site that has non-zero, non-singleton entropy in at least one partition window).
labels: Character vector of length N_partitions. Partition labels used on the x-axis. Defaults to part_data$Dates_Labels.
site_colors: Named character vector. Names are site indices as character strings (e.g. "681"); values are colour strings (e.g. "#FB8072"). Sites absent from site_colors receive automatically assigned colours. Default is NULL (all colours auto-assigned).
by_group: Logical. If TRUE, maps line type and line width to site groups defined by groups_list. Default is FALSE.
groups_list: List of integer vectors. Each element specifies the site indices belonging to one explicit group. Sites in sites not covered by any explicit group are automatically assigned to a remainder group appended as the final element. Total group count (explicit plus remainder) must not exceed 6. Required when by_group = TRUE.
line_type_groups: Character vector. One line-type string per group (in order, including the automatic remainder group). Must have length equal to the total number of groups. Defaults to "solid" for the first group and "dashed" for all remaining groups.
line_size_groups: Numeric vector. One line-width value per group (in order, including the automatic remainder group). Must have length equal to the total number of groups. Defaults to 2 for the first group and 1 for all remaining groups.
transformation: Object of class "transform" or "trans" as returned by trans_new, or NULL (identity, no transformation). Applied to the y-axis via scale_y_continuous. Default is NULL.
line_size: Numeric. Line width used when by_group = FALSE. Default is 1.5.
legend: Logical. If TRUE (default), the site colour legend is displayed.
legend_text_size: Numeric. Font size of legend text in points. Default is 12.
x_angle: Numeric. Rotation angle of x-axis tick labels in degrees. Default is 45.
grayscale: Logical. If TRUE, overrides site_colors and renders all trajectories in greyscale. Default is FALSE.
plot_title: Character. Plot title string. Default is "Shannon Entropy Trajectories".

Value

A named list with five elements:

Data_Frame: Long-format data frame with columns sites (factor), entropies (numeric), class (factor), max_class (integer), period (integer), and coverage (character, partition label). Suitable for direct input to plot_site_class_trajectory.
Plot: A ggplot object. Augment with additional layers (e.g. geom_vline for VOC emergence events) before printing or saving with ggsave.
Colors: Named character vector mapping each plotted site index (character) to its assigned colour string. Pass as site_colors to subsequent calls to plot_entropy_trajectories for a consistent colour scheme across figures.
XBreaks: Integer vector of partition period indices. Pass as xbreaks to plot_site_class_trajectory.
XLabels: Character vector of partition labels aligned with XBreaks. Pass as xlabels to plot_site_class_trajectory.

Details

For each partition the function extracts the GMM clustering result from part_data$Clusters and assembles a long-format data frame spanning all selected sites across all partitions. Sites absent from a given partition (removed by zero-entropy or singleton filtering, or because the partition window was empty) are silently omitted from that partition's trajectory and do not interrupt adjacent observations.

Class relabeling. This function does not perform any relabeling of GMM class labels. If class 1 must denote the highest-entropy group throughout the returned $Data_Frame (e.g. before passing it to plot_site_class_trajectory), the user should call relabel_entropy_classes on each partition's Clusters[[i]]$DataFrame and update Max_Entropy[i] to 1L prior to calling this function.

Colour scheme. Site colours are specified through site_colors, a named character vector whose names are site indices (as character strings) and whose values are valid R colour strings. Any site not listed in site_colors receives an automatically assigned colour from the HCL "Dark 2" qualitative palette. The final colour mapping is returned as $Colors so the same scheme can be passed to subsequent calls for cross-plot consistency.

Group-stratified trajectories (by_group = TRUE). When biological groupings must be distinguished visually (e.g. defining SNP sites vs. other mutation sites), groups_list partitions sites into explicitly named groups. Any site not assigned to an explicit group is automatically collected into a remainder group appended as the final element of groups_list. Line type and line width are mapped to group membership via line_type_groups and line_size_groups, both of which must have length equal to the total number of groups (explicit plus the automatic remainder). At most six groups are supported.

max_class column. The returned $Data_Frame carries a max_class column recording the label of the highest-entropy GMM component for each partition, taken directly from part_data$Max_Entropy[i]. This column is consumed by plot_site_class_trajectory (red labels) and by downstream class-assignment tables.

Examples

# Three-period synthetic dataset with distinct trajectory shapes:
# Site 1: up-then-down (peak in P2).
# Site 2: monotone up.
# Per-partition Shannon entropy (bits):
#   P1 (Jan)  s1: 0.469  s2: 0.469
#   P2 (Feb)  s1: 1.522  s2: 0.881
#   P3 (Mar)  s1: 0.722  s2: 1.522
df <- data.frame(
  s1 = c(
    c(1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L),         # P1: 9:1
    c(1L, 1L, 1L, 1L, 2L, 2L, 2L, 2L, 3L, 3L),         # P2: 4:4:2
    c(1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 2L)          # P3: 8:2
  ),
  s2 = c(
    c(1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L),         # P1: 9:1
    c(1L, 1L, 1L, 1L, 1L, 1L, 1L, 2L, 2L, 2L),         # P2: 7:3
    c(1L, 1L, 1L, 1L, 2L, 2L, 2L, 2L, 3L, 3L)          # P3: 4:4:2
  ),
  Date = rep(
    seq(as.Date("2020-01-01"), by = "month", length.out = 3L),
    each = 10L
  )
)

part_data <- partition_time_windows(
  data          = df,
  n_sites       = 2L,
  window_length = 1L,
  window_type   = 3L,
  start_date    = "2020-01-01",
  end_date      = "2020-04-01",
  removez       = FALSE,
  removesngl    = FALSE
)

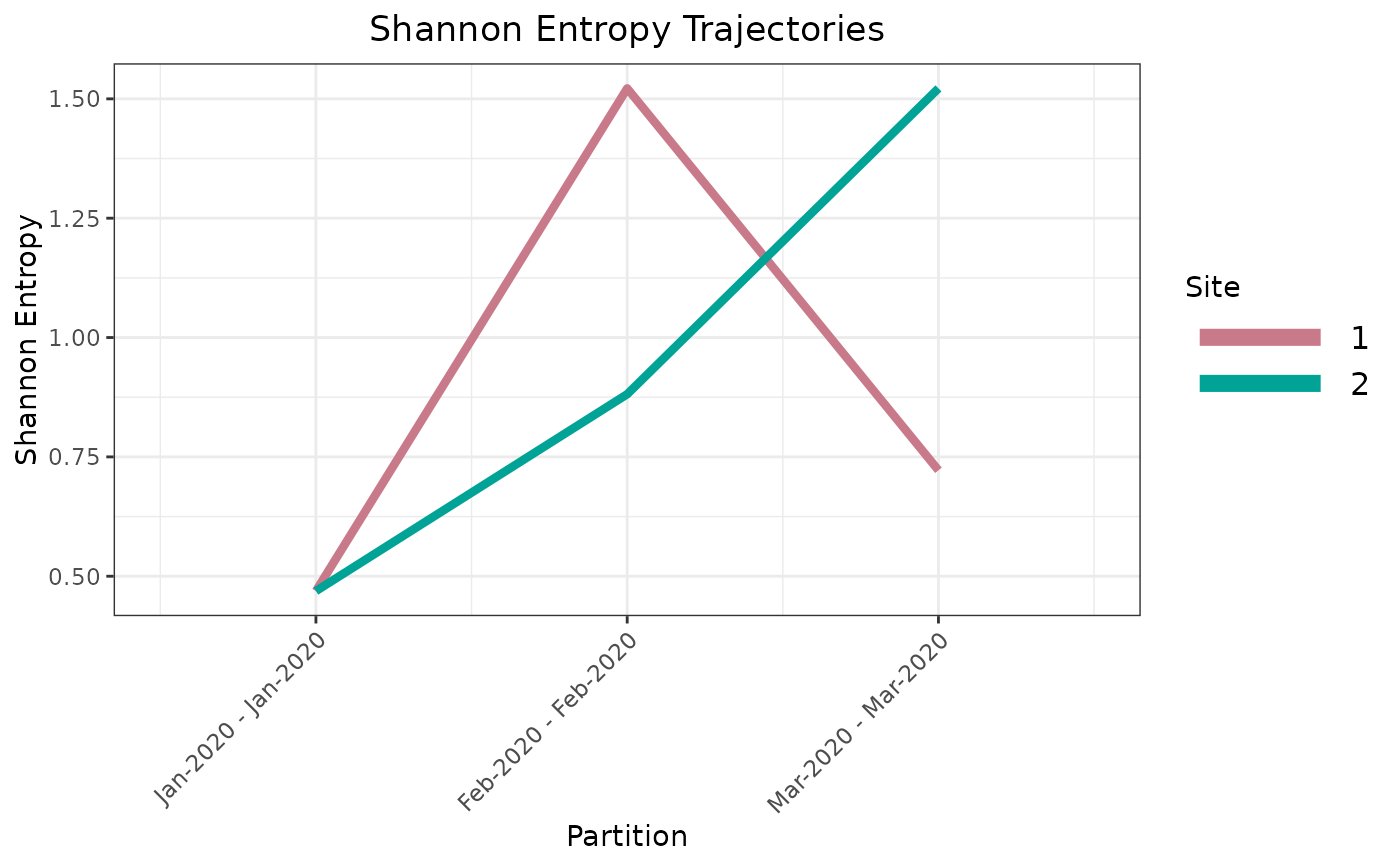

result <- plot_entropy_trajectories(part_data = part_data)
print(result$Plot)
